J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round

Name: J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round
Brand: YINGDA
Price: 1 USD

Quality J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round for sale

Brand Name : YINGDA

Certification : ISO,CE

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 50000pcs per month

Delivery Time : 2-5days

Model Number : J Hook Suspension Clamp

Standard or Nonstandard : Standard

Application : Suspension pole or aerial mount

ADSS Cable diameter : 5-8mm

Function : Distribution Fiber System (FTTH)

Load retention capability : 100KG

Material : Stainless steel +Rubber

Breaking load : 3.8KN

Surface treatment : Galvanization

Dimension : 135*80*35 mm

Contact Now

J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round Shape

Suspension clamps designed to suspend ADSS round optical fiber cable during construction of transmission line. The clamp consistsof plastic insert, which clamp the optical cable without damagdamageide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of neoprene inserts.

The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets. The hook of ADSS clamp can be produced form stainless steel materials according to you request.

J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round

J Hook Clamp Features

Main body stainless steel, long last and durable
Neoprene inserts is changeable according to different cable size

J Hook Clamp Specification


Model	Dimension	Material	Cable Diameter	Break Load	Net Weight
YD-JH0508	1358035mm	TPR+GS	5-8mm	3.8KN	161g
YD-JH0812	1358035mm	TPR+GS	8-12mm	3.8KN	158g
YD-JH1015	1358035mm	TPR+GS	10-15mm	3.8KN	158g
YD-JH1520	1358035mm	TPR+GS	15-20mm	3.8KN	156g

J Hook Clamp Application

Outdoor installation on the telecommunication equipment between the buildings and industrial constructions to fix and protect optical cables.

J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round

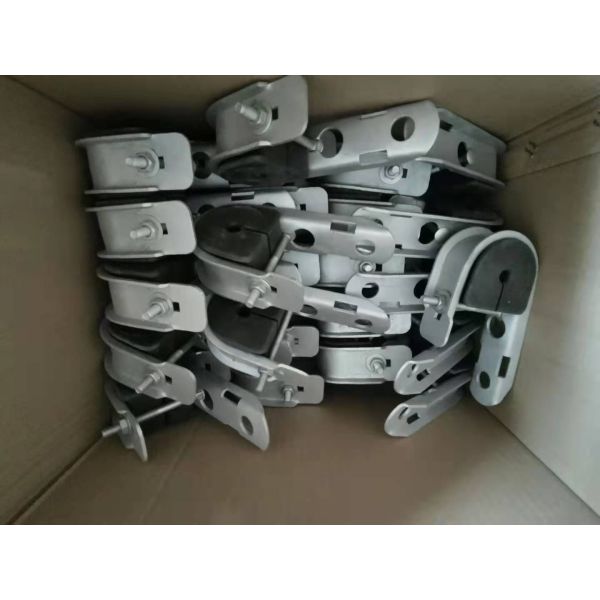

J Hook Clamp Package Information

J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round

J Hook Clamp Similar Clamps Yingda Can Offer

J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round
